300L Horizontal Vacuum Flour Mixer

——

Unit Price: USD 20000.0000 / Set/Sets
Min. Order: 15000 Set/Sets
inquiry

Basic Info

——

Model No.: ZKHM-300

Type: Mixer

Voltage: 380V

Customized: Customized

Material: Stainless Steel

Automaticity: High Automation Level

Application: Biscuits, Hamburgers, Bread, Noodles, Dumpling

Additional Info

——

Packaging: Seaoworthy wooden case

Productivity: 160kg

Brand: Helper

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 sets per month

Certificate: ISO9001-2008,CE

Product Description

——

 Horizontal Vacuum Flour Mixer

Helper Vacuum mixer is the most advanced dough kneading machine in the domestic market. It has been applied in different fields of flour products range: biscuits, Saqima, hamburgers, bread, noodles, various pies, Fried dough sticks, dumplings, steamed buns, etc. All the mixing shafts used by our vacuum dough kneading machine has obtained national patent, it imitates the principle of hand kneading dough, to make the gluten network forming fast, uniform the protein texture structure, this results much better effects of gluten strength and satisfying taste.

Features and Advantages

--- Made of super stainless steel, rational structure of frame and mixing tank. Durable for using, stable running.

--- Automatic model: PLC control, working time and vacuum degree can be set according to the process craft requests.

--- Processing under the vacuum negative pressure, makes the protein fully absorbing moisture in shortest time, forms the best gluten network and smooth dough appearing, and right status tenderness of dough. The finished dough appears slightly yellow, excellent curing status.

--- High ratio of water absorbing, greatly reduces production cost.

--- Adopting unique way of mixing, combined with mixing, kneading, fermenting functions, and save time to leave the dough for certain time, can be used directly once dough comes out.

--- Optional of automatic water and powder supply devices, to improve production efficiency further, labor work saving. (optional)

--- Unique design for sealing makes it safe, reliable, long service life and easy disassembling.

model power(kw) vacuum degree (Mpa) powder processing(kg) Mixing speed Net Weight(kg) dimension(mm)
ZKHMV-300 18.5 -0.08 160 Paddle shaft 39,Rod type shaft 66/33 1600 1800*1200*1600


Vacuum Dough Mixer Series

model power(kw) vacuum degree (Mpa) powder processing(kg) Mixing speed Net Weight(kg) dimension(mm)
ZKHMV-40 5 -0.08 7.5~10 Frequency control 300 1000*600*1080
ZKHMV-75 6.6 -0.08 40 Paddle shaft 39,Rod type shaft 66/33 500 1210*660*1165
ZKHMV-150 12.8 -0.08 80 Paddle shaft 39,Rod type shaft 66/33 1000 1340*920*1375
ZKHMV-300 18.5 -0.08 160 Paddle shaft 39,Rod type shaft 66/33 1600 1800*1200*1600
ZKHMV-600 34.8 -0.08 300 Paddle shaft 39,Rod type shaft 66/33 2500 2050*1200*1800

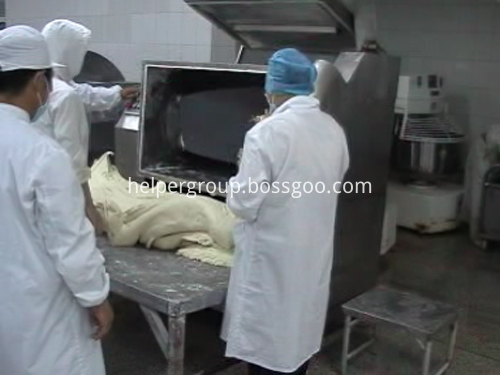

Vacuum dough mixer 300 mixing dough

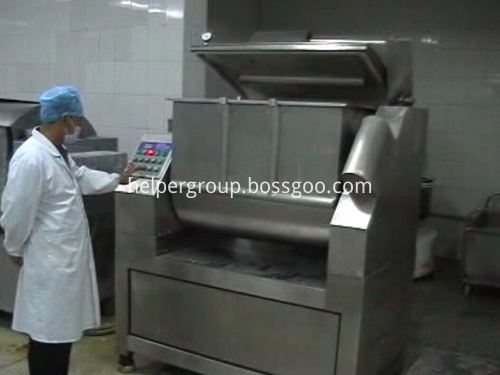

Vacuum dough mixer 300 operation
