Industrial Meat Bowl Chopper Manufacturer and Supplier

Min. Order:	1 Set/Sets

Model No.: ZB125

Applicable industry: Food &Amp; Beverage Factory, Food Shop, Hotels, Farms, Food &Amp; Beverage Shops

Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

status: New

degree of automation: Automatic

place of origin: China

warranty period: 1 Year

Mechanical test report: Provided

Video factory inspection: Provided

Core component warranty period: 1 Year

Core components: Bearing, Motor, Gearbox

Core selling point: High Rigidity

Type: Bowl Cutter

Voltage: 380V

Customized: Customized

Material: Stanless Steel

Application: Meat Processing

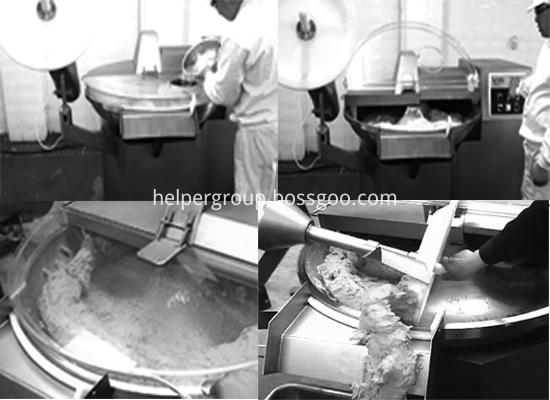

Understanding of an Industrial Meat Bowl Chopper Machine

By using high-speed rotating cutters, This machine can cut and mix meat and auxiliary materials into paste status, also can mix the meat, auxiliary materials and water together evenly. The bowl cutter produced by our company has the perfect combination of the cutter speed, pan speed and the distance between the cutters and the revolving pan. With little temperature rise and short cutting time, the machine can produce meat paste with the emulsification, elasticity and smoothness to a maximum extent. The bowl cutter is an ideal machine with features of easy operation,safety and reliability, meeting hygiene requirements.

Features and Advantages of Helper Bowl Chopper Machine

1. HACCP standard 304/316 stainless steel
2. Auto protection design to make sure safe operation
3. Distance is less than 2mm between the cutting knife and cutting pot.
4. Excellent cutting result due to the best combination of knife and pot speed
5. Noise protecting cover noise preventing cover
6. Temperature monitoring and little meat temperature changing, benefit to preserve freshness
7. Automatic output device and automatic lifting device
8. Double seals structure to protect the axis of cutter being rusted and the risk of contaminant in the sausage meat will be avoided.
9. Key parts produced by advanced machine processing center, ensure the precision of process.
10. Waterproof and ergonomic design to reach IP65 security.
11. Hygienic cleaning in short time due to smooth surfaces.
12. Vacuum and non-vacuum option for customer
13. Also suitable for fish,fruit,vegetable,and nut processing.

Technical Data of 125L Bowl Cutter/ Bowl Chopper Machine

Model	Productivity(kg)	Volume(L)	Power(kw)	Knife quantity(piece)
ZB-125	100-110	125	33.2	6

Knife speed(r/min)	Bowl speed(r/min)	unloader speed(rpm)	Dimension(mm)
300/1500/3000/4500	7/11	88	2100×1420×1600

Overview to Bowl Cutter series:

Model	Capacity (kg)	Volume (L)	Power (kw)	Knife	Bowl Speed (rpm)	knife Speed (rpm)	Weight (kg)	Dimension (mm)
ZB-80	70-75	80	11	6	7/11	750/1500/3000	1300	190015001500
ZB-125	100-110	125	33.2	6	7/11	300/1500/3000/4500	2000	210014201600
ZB-200	170-180	200	60	6	7.5/10/15	300/1850/3700/4500	3500	295024001950
ZB-200Vacuum	170-180	200	65	6	7.5/10/15	300/1800/3600/4500	4800	310024202300
ZB-330	270-310	330	82	6	6/12	300/1800/3600/4500	5000	385529002100
