U Clips Pneumatic Double Clipper

U Type Clipper

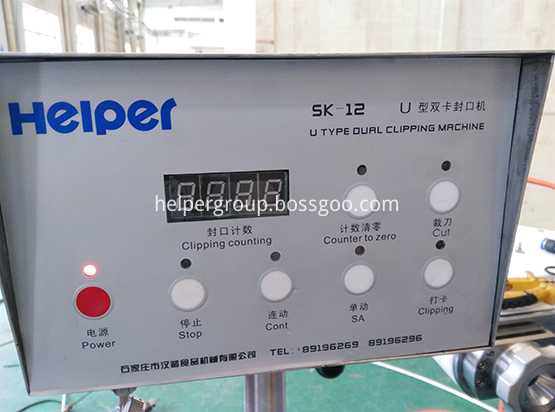

The double clipping machine is made by stainless steel with PLC control module. It is applicable to U type clips for closing most of artificial casing sausages. Finish making two clips at one time. The machine is powered by compressed air which is easy achieved all around the world by a small air compressor. There are auto and manual work mode for the worker and easy to change by pressing the buttons. This machine has cutter separator and length setting of sausage is according to customer`s request.

Connected to sausage filler, by closing sausages in artificial casing with aluminum clips, it will help producers to make an automatic manufacturing line. The original aluminum wire clips from Helper and together with SK-12 clipping machine guarantee top quality, efficient, trouble-free production.

Features and characters
--- Easy connected with various stuffing filling machines to realize automatic production.
-- -U type clips is used which are available all around the world.
--- Durable pneumatic components ensure the quality of machine.
--- Low investment for small scale producer.
--- Quipped with automatic counting and cutting system.
--- Automatic and manual working mode make it easy for different product production.
--- Stainless steel structure and excellent surface treatment make for easy cleaning.

MAIN TECHNICAL PARAMETERS:
U clip model: U 210 and U 220
Casing available: semi-perimeters 25-60 mm and 40-125 mm
Air pressure: 0.4-0.6 Mpa
N.W: 100kg
Dimension: 1400x1000x1800 mm
