Mechanical Sausage Filling System

Overview to Mechanical Sausage Filler

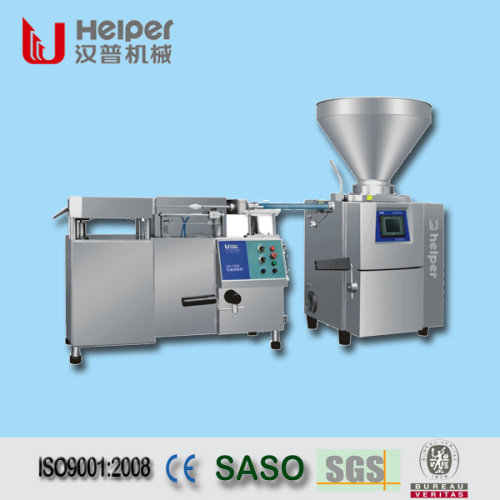

Mechanical filling machine has absorbed many merits of the same kinds both domestic and abroad. It adopted the updated mechanical filling device, driven by servo-motor to assure its accurate filling. The whole machine adopts SUS304 plate with unique exterior design and surface processing technique.

It can be connected to various double clipping machines to realize automatic manufacturing line with dosing and clipping. It is used in a wide range of applications, not only sausage and meat products, but also some new trend foods, such as quick-frozen food, convenience food etc.

Features and characters

---Filling out of all types of pastes into any casing and container with high output and high quality;
---Compact structure and reasonable design.
---Whole body stainless steel structure meets all hygienic requirements;
---Simple operation thanks to touch screen operation;
--- Compatible with different clippers of any manufacturer;
--- Optional accessories: high speed twister, filling head, filling flow divider, etc.
--- Automatic twisting device is applicable for various casing, natural casing and collagen casing etc.
---Connecting with clipping machine or sausage linker to realize automatic production line.
--- Filling speed is step-less adjustable according to different kinds of products.
---Portioning tolerance for meat paste is within±2g
---Operation language is customized according to requirements.

Key Parameters of Mechnical Sausage Filler

1. Each portion: 3-9999g
2. Filling capacity: 5500kg/hour
3. Filling types: automatic/manual/direct
4. Hopper volume: 180L
5. Power: 3KW
6. Voltage: 380V
7. N.W: 600KG
8. Dimension: 905x850x1620mm

Production film of Mechnical Sausage Filling System
