Industrial Sausage Linker

——

Min. Order: 1 Set/Sets
inquiry

Basic Info

——

Model No.: GN-1200I

Automaticity: High Automation Level

Machines Connected: Filler,linker,hanger

Casing Available: Natural Casing,collagen Casing And Cellulose Casin

Application: Hot Dog Sausage,mini Sausage,twisting Sausage

Additional Info

——

Packaging: Seaoworthy wooden case

Productivity: 1200 pcs per min

Brand: Helper

Transportation: Ocean

Place of Origin: China

Supply Ability: 3 sets per two month

Certificate: ISO9001

Product Description

——

Industrial Sausage Linker

Compared with traditional twister, it has the characteristics of high speed, continuous work, short auxiliary time and low waste of casing and raw materials. Because of its unique way of working, the quantitative error is very small in actual production. The machine consists of twisting part, length-control conveying part and tube-switch part. It can be connected to any quantitive filling machine to realize automatic high speed twisting. It is suitable for various casing, such as natural, collagen, polyamide or cellulose casing, etc. The Linker System provides a quick and accurate way to produce sausages, hot dogs, frankfurters, chorizo and other types of products.

Features and characters
--- adopts servo control system, running accurate and reliable.
--- high automatic design with precise hanging of the product..
---Twisting length and twisting circles are stepless adjustable.
---Connected with automatic hanging machine easily
---Stop running when run out of casing.
---Operation language is customized according to requirements.
--- Hygienic design concept.

MAIN TECHNICAL PARAMETERS:
high speed twisting machine:
Twisting speed: 1200 cricle/min
Twisting length: 15-180mm
Nylon casing semi-perimeter: 30-38mm
Collagen casing diameter: 13-35mm
Power: 2.65 KW   Volatge: 380V
Air pressure: 0.5-0.8Mpa
Dimension: 1460x620x1200mm
Parameters of hanging machine:
Maximum unilateral hang length: 520mm
Power:1.3KW
Hanger dimension: 2595x630x1041mm

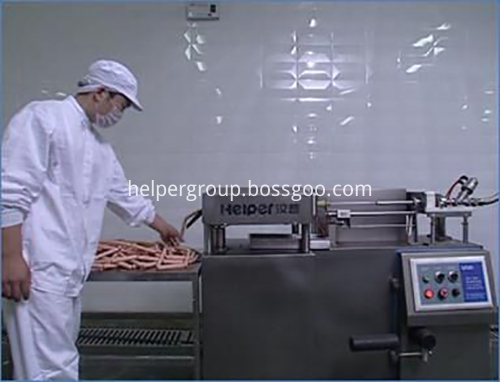

sausage linker working process

Helper group diagram

exhibition

clients domestic
