Model No.: GN-1200II
Automaticity: High Automation Level
Machines Connected: Filler,linker,hanger
Casing Available: Natural Casing,collagen Casing And Cellulose Casin
Application: Hot Dog Sausage,mini Sausage,twisting Sausage
Packaging: Seaoworthy wooden case
Productivity: 1200 pcs per min
Brand: Helper
Transportation: Ocean
Place of Origin: China
Supply Ability: 3 sets per two month
Certificate: ISO9001

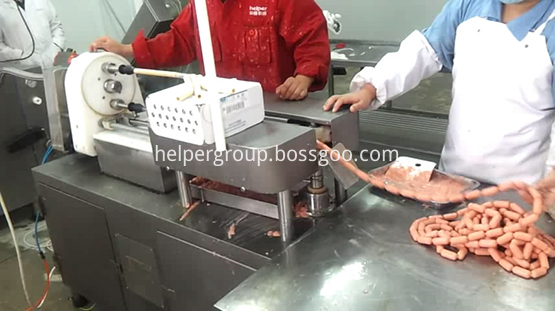

Automatic Sausage Linker
Features and characters
--- adopts servo control system, running accurate and reliable.
--- high automatic design with precise hanging of the product..
---Double filling/twisting tubes structure to simplify the casing replacement.
---Twisting length and twisting circles are stepless adjustable.
---Connected with automatic hanging machine easily
---Stop running when run out of casing.
---Operation language is customized according to requirements.
--- Hygienic design concept.
MAIN TECHNICAL PARAMETERS:
high speed twisting machine:
Twisting speed: 1200 circle / min
Twisting length: 15-180 mm
Nylon casing semi-perimeter: 30-38 mm
Collagen casing diameter: 13-35 mm
Power: 2.65 KW Volatge: 380 V
Air pressure: 0.5-0.8 Mpa
Dimension: 1460x620x1200 mm
Parameters of hanging machine:
Maximum unilateral hang length: 520 mm
Power:1.3 KW
Hanger dimension: 2595x630x1041 mm
High Speed Linking System Film
