Blocks and Cubes Cutting Machine

——

Min. Order: 1 Set/Sets
inquiry

Basic Info

——

Model No.: DRQF/2D-300

Type: Diced Machine

Voltage: 380V

Customized: Customized

Automaticity: High Automation Level

Additional Info

——

Packaging: Seaoworthy wooden case

Productivity: 2000kg/hour

Brand: Helper

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 sets per month

Certificate: ISO9001-2008

Product Description

——

Blocks and Cubes Cutting Machine

Blocks and Cubes Cutting Machine is a two dimensional square meat cutter with cross knife head on the top of the belt. Frozen meat and cooked meat can be cut into square pieces with dimensions from 5 mm to 50 mm. The belt is made of special hard material with a hard plate under the belt, no destroying of meat structure and no fat squeeze separation. Thanks to the frequency control and touch screen control board, the meat dicing dimension is adjustable by setting simple parameters on screen. It is used to cut any kind of meat similar material with plate shape.

Model Power(kw) Height of loading(mm) Dimension of raw material(mm) Temperature Cutting range Speed of knife(r/min) Weight(kg) Dimension(mm)
DRQF/2D-300 4.75 55 Width300 and thickness 45 -10 5mm to 50mm 84 600 2015811.51240

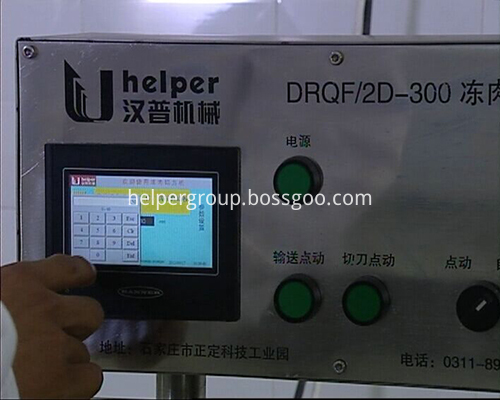

Block and cube cutting machine operation

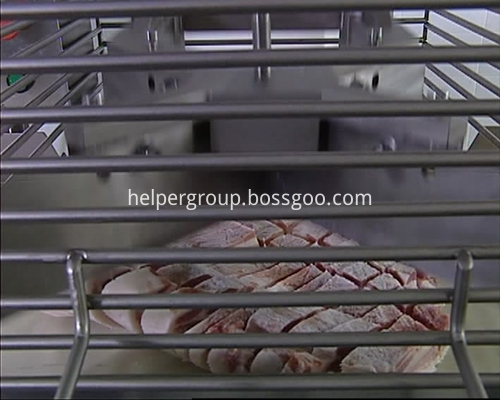

Block and cube cutting machine operation2

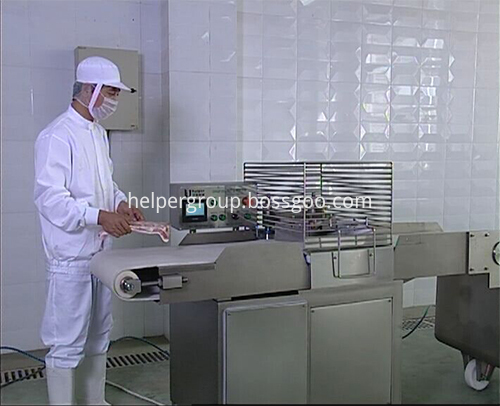

Block and cube cutting machine operation3
